Remove All Rings Documentation

This plugin is a combination of four methods to tackle most types of ring artifacts: full rings, partial rings, fluctuating rings, and dead rings.

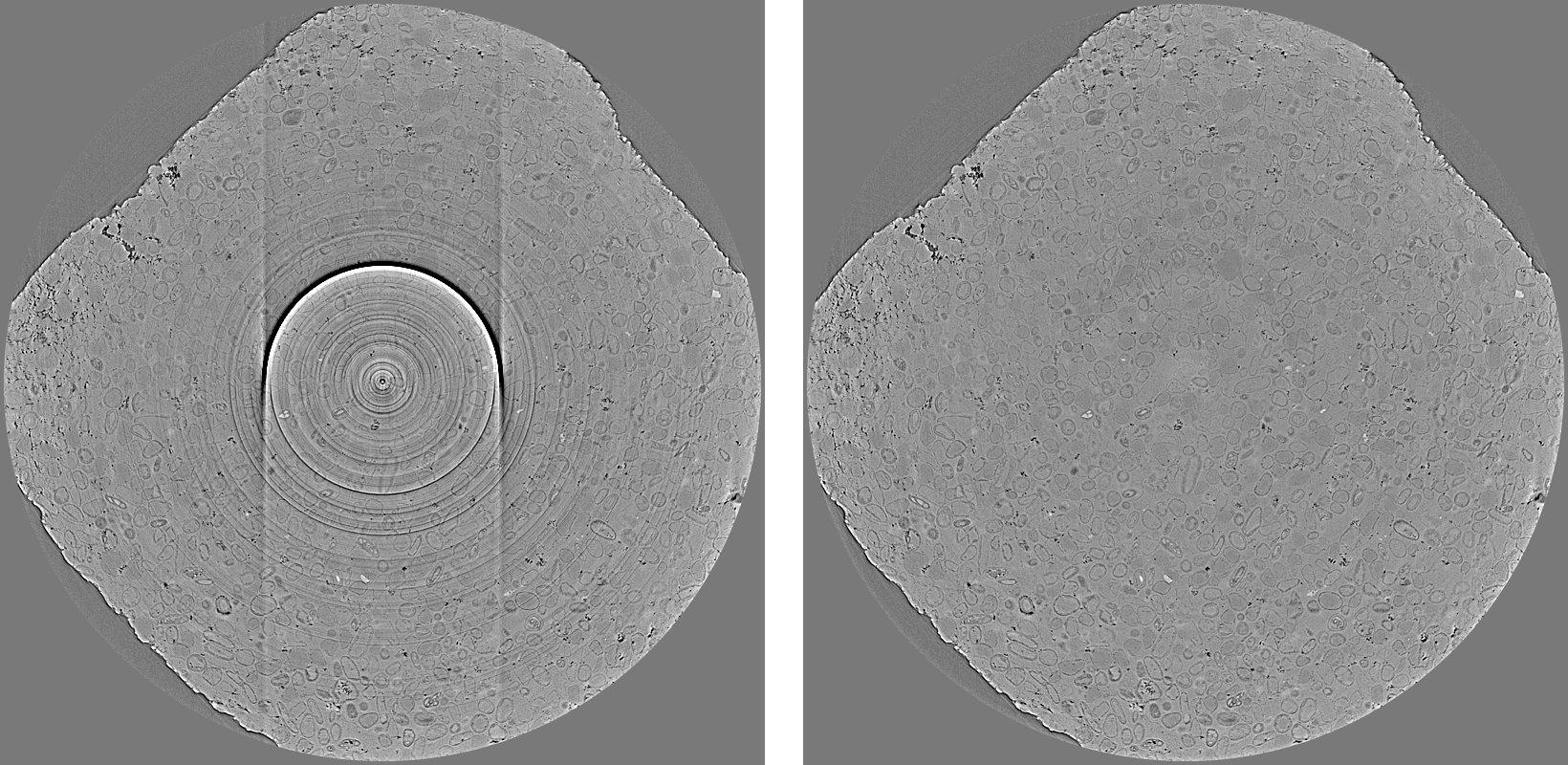

Figure 1. Reconstructed images before and after the plugin is applied.

Explanation about the methods and how to use is here (note that ring artifacts in a reconstructed image corresponding to stripe artifacts in the sinogram image).

Important note:

RemoveAllRings should not be used after a plugin which blurs an image such as PaganinFilter or FresnelFilter. Methods in RemoveAllRings rely on the sharp change of gray-scales of stripe artifacts to detect and remove them. Smoothing filters like PaganinFilter or FresnelFilter will hamper the cleaning capability of RemoveAllRings.
